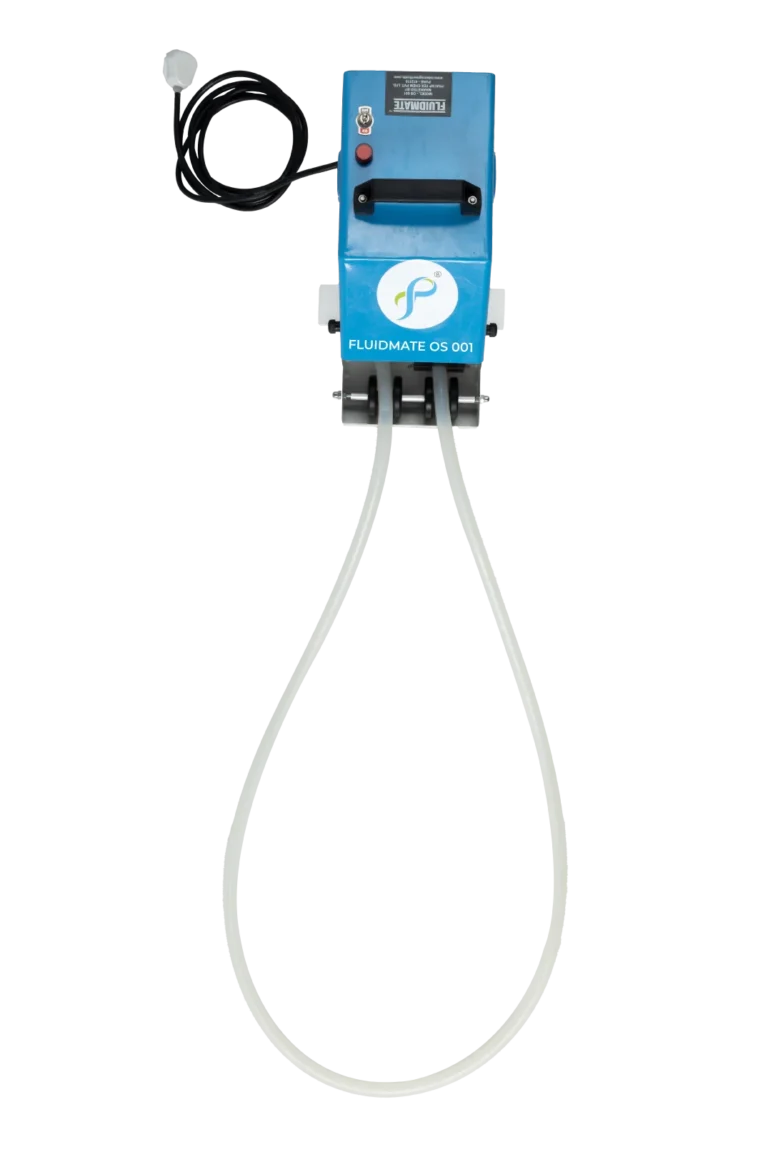

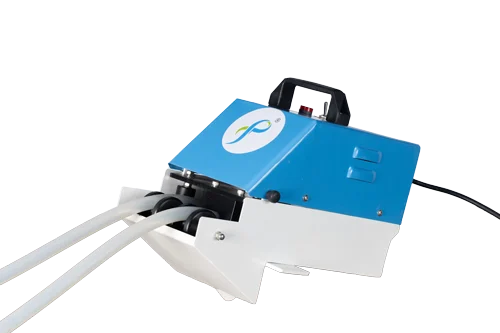

Fluidmate OS 001
Compact Oil Skimmer for Machining Centre Sumps
The Fluidmate OS 001 is a compact oil skimmer machine specifically designed to remove floating lubrication oil leaking into machining centre sumps, protecting cutting fluid health and preventing machine breakdowns that affect productivity. Many conventional skimmers (belt type, disc type) are ineffective due to limited reach, slow oil removal, and removal of cutting fluid along with the floating tramp oil. The OS 001 solves all of these problems.
- 6–40 LPH
- Single Phase
- Compact
Applications
Ideal for Machine Shops
Machine shop oil skimmer and tool rooms
ETP Wastewater Treatment
ETP wastewater oil skimmer and other wastewater treatments
Multi-Industry Applications
Chemical, Metal, Poultry, and food processing oil skimmer
Disposal sites
Disposal sites
Industrial washing machines
Industrial washing machines
Automobile wash station oil skimmer
Automobile wash station oil skimmer
Heat treatment, oil skimmer and rolling mills
Heat treatment, oil skimmer and rolling mills
Key Features of Fluidmate OS 001
High Oil Removal Rate
It removes tramp oil from coolant at a high rate of 6 to 40 litres per hour, significantly faster than conventional belt and disc type skimmers.
Reaches Under the Machining Centre
A key differentiator of the OS 001 is that the tube reaches and removes oil from areas directly under the machining centre, where conventional oil skimmers cannot reach.
Works for Long Hours
The quick-cooling motor is built for extended continuous runs, making the OS 001 a dependable oil skimmer machine for long shifts and unattended 24/7 operation.
Custom-Made Tubes
Tubes are custom-manufactured as per customer requirements. Standard sizes available are 1.2, 1.8, 2.2, and 2.5 metres, suitable for individual machine sump and oil skimmer for small sump applications.
Easy Mounting, Dismounting & Portability
The OS 001 is designed for quick mounting and dismounting, a fully portable oil skimmer machine that moves easily between machines across your shop floor.
Attracts Only Oil
The collector tube selectively attracts only floating oil, leaving cutting fluid, water, and solid particles behind, preventing the wastage of cutting fluid that is common with belt and disc-type skimmers during tramp oil removal.
Gyrating Action Breaks Oil Crusts
The gyrating action of the collector tube breaks up hardened oil crusts on the sump surface, handling even the most stubborn floating oil skimmer challenges.
Virtually Maintenance-Free
The unique anti-clogging design and cast metal housing make the OS 001 a virtually maintenance-free tube-type oil skimmer.
Unaffected by Floating Debris
Collector tube performance is unaffected by any floating debris on the sump surface, ensuring consistent coolant oil skimmer performance at all times.
Auto-Adjusts to Changing Fluid Levels
The tube floats up or down automatically to adjust to changing water or coolant levels, no manual readjustment required.
Why Choose the Fluidmate OS 001?
Deep Oil Removal
Fluidmate OS 001 is an oil skimmer for CNC machine that reaches and removes oil from areas directly under the machining centre, unlike any conventional skimmer.
Superior Skimming Performance
Outperforms conventional belt-type, tube-type and disc-type designs, ensuring less fluid wastage, higher oil removal rate
Easy Power Connection
This single-phase oil skimmer is easy to connect to any standard power supply.
Compact & Lightweight
Lightweight at under 5 KGS, the most compact oil skimmer machine in the Fluidmate range
Prevents Cutting Fluid
Contamination
Eliminates the root cause of cutting fluid contamination by continuously removing lubrication oil leakage from the machine’s sump.
Product Specifications
| Parameter | Value |
|---|---|
| Model | Fluidmate OS 001 |
| Oil Removal Rate | 6 to 40 Litres per Hour |
| Skimmer Dimensions | 8″ × 8″ × 6″ |
| Weight | < 5 KGS |
| Motor | A.C. Synchronous Motor (Single Phase) |
| Torque | 20 KG/CM |
| Standard Tube Sizes | 1.2 / 1.8 / 2.2 / 2.5 Mtr |
| Custom Tube Sizes | Available as per the requirement |
| Operation | 24/7 Unattended |
| Housing | Cast Metal |
| Maintenance | Virtually Maintenance-Free |

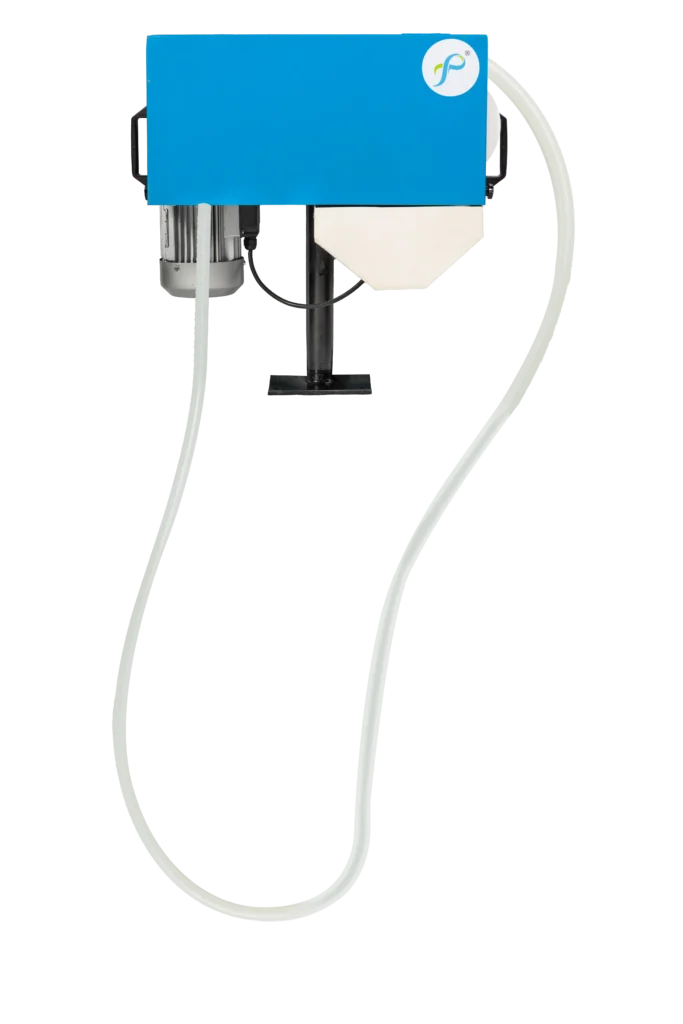

Fluidmate OS 003
Remove Tramp Oil. Extends Coolant Life.
The Fluidmate OS 003 is a high-efficiency, tube-type oil skimmer that continuously removes floating tramp oil, mineral oil, grease, and oily waste from coolant tanks, ETP sumps, and industrial process water at rates of 6 to 40 litres per hour, with virtually zero maintenance.
- 6-40 LPH Oil Removal
- Under 12 KG
- 24/7 Unattended Operation
Applications
Centralised coolant filtration system
Efficiently removes cast iron chips, steel swarf, aluminium fines, and coolant contaminants to extend coolant life and improve machining performance.
ETP and wastewater treatment
Captures ultra-fine metallic particles and grinding sludge that conventional filters often miss, ensuring cleaner coolant and better surface finish.
Chemical, Metal, Poultry, and food processing
Ideal for high-volume production lines. One portable SC 200 can service multiple machines, reducing maintenance time and improving uptime.
Disposal sites oil removal
Maintains coolant quality to support tight tolerances, superior surface finish, and consistent machining accuracy.
Industrial washing machines
Suitable for cleaning water-soluble coolants, neat oils, and quenching oils, making it a versatile solution for multiple machining applications.
Automobile washing stations
From fabrication shops to heavy engineering, the SC 200 efficiently removes swarf, sludge, and contaminants to improve coolant health and reduce maintenance costs.
Heat treatment and rolling mills
From fabrication shops to heavy engineering, the SC 200 efficiently removes swarf, sludge, and contaminants to improve coolant health and reduce maintenance costs.
Key Benefits of the Fluidmate OS 003
Tramp oil removal is one of the most impactful, yet most overlooked, steps in coolant maintenance. The OS 003 solves this quietly, continuously, and at minimal cost.
High Oil Removal Rate
Removes between 6 and 40 litres of tramp oil from coolant per hour, significantly faster than conventional belt or disc skimmers.
Runs Unattended 24 Hours
The quick-cooling motor is built for continuous duty cycles. Once installed, this industrial oil skimmer operates unattended 24/7.
Full-Sump Coverage
OS 003 reaches every corner of a large centralized coolant filtration system sump or ETP tank, where a fixed-position skimmer would leave blind spots.
No Maintenance Required
The unique anti-clogging design and cast metal housing make the OS 003 a virtually maintenance-free floating oil skimmer. Maintenance typically consists of periodic tube inspection, nothing more.
Extends Coolant Life
By removing tramp oil before it degrades the coolant, the OS 003 significantly extends coolant life in machines
Adapts to Changing Fluid Levels
The floating tube automatically rises and falls with the fluid surface, maintaining consistent skimming performance regardless of whether the sump is full or partially drained.
Why Choose the Fluidmate OS 003?
High Oil Removal Rate
Oil skimmer machine with a high removal rate.
Selective Oil Removal
Attracts only oil, not water or emulsion – minimising fluid wastage.
Superior Skimming Performance
Outperforms conventional belt-type oil skimmer and disc-type skimmers.
Breaks Tough Oil Crusts
Gyrating tube action breaks up oil crusts that fixed skimmers cannot handle.
Automatic Level Adjustment
Auto-adjusts to changing fluid levels, no manual intervention.
Maintenance-Free Design
Virtually maintenance-free with a unique anti-clogging design.
Energy-Efficient Operation
Low power consumption and cost-effective tramp oil separator machine.
Product Specifications
| Parameter | Value |
|---|---|
| Model | Fluidmate OS 003 |
| Product Type | Tube Type Oil Skimmer |
| Oil Removal Rate | 6 to 40 Litres per Hour |
| Skimmer Dimensions | 18″ × 12″ × 6″ |
| Weight | < 12 KGS |
| Motor Type | 3-Phase Induction Motor with Gear Box |
| Motor Design | Quick Cooling (for long continuous runs) |
| Housing Material | Cast Metal |
| Standard Tube Lengths | 5 mtr / 7 mtr / 9 mtr |
| Custom Tube Length | Available as per the requirement |
| Mobility | Built-in Wheels for Easy Manoeuvring |
| Operation Mode | 24/7 Unattended Continuous |
| Mounting | Easy mount/dismount design |
| Maintenance | Virtually maintenance-free (anti-clog) |
